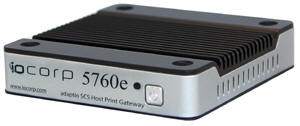

I-O 5760e IP Print Server Gateway
for i5, iSeries & zSeries Mainframes

A Print Server Gateway to Provide Full
iSeries / zSeries Printer Connectivity

for Network Attached Matrix Impact Printers, Thermal Laser Printers and Multi-Function Printers (MFP)

PLEASE NOTE:  The 5760e IPDS Print Server Gateway has been replaced with the next generation I-O Win10 Adaptio SCS iSeries/zSeries Print Server Gateway .  Please click here to be taken to the Win10 Adaptio SCS Print Server Gateway page if you are not taken there.

License upgrades for installed 5760e units are available by clicking here.

Overview

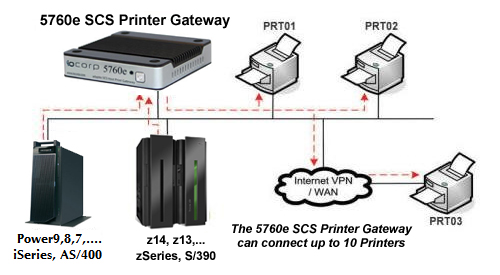

The I-O Corporation 5760e SCS Printer Gateway is a high speed Ethernet-in, Ethernet-out SCS gateway print server designed to convert native IBM Power9, Power8/7/6, iSeries AS/400 i5 or z14, z13, zSeries S/390 zSeries host print jobs to PCL, allowing them to be printed by almost any printer (laser, matrix, thermal) on the Network or via a USB connection to the printer. The 5760e Print Server Gateway can be initially ordered with support from 1 to 10 printers, and delivers IBM  SCS printing via TCP/IP or USB, providing the control and printer feedback found in an IBM host environment.  When additional printer support is needed, it is simply upgraded via a new license code.  Click here for other 5760e Connectivity Diagrams.

Features

  • Connects from 1 to 10 Ethernet capable printers (laser, matrix, thermal)  or MFP devices

  • Printer Session is "Auto Configured" on the IBM host using TN5250e or TN3270e

  • Supports standard Host printing using SCS protocol

  • High speed printing - Supports printers with up to 250 pages/minute per printer

  • 10 / 100 Mbps Ethernet LAN, auto sensing

  • Multiple Host support (Power9, Power8 and all iSeries AS/400, and z14, z13 and all zSeries S/390)

  • Host printing via Telnet (TN5250e and TN3270E) and TCP/IP (PPR/PPD

  • Simple, one step set-up (auto configuration) when using TN5250e or TN3270e

  • Host controlled printing, including Forms Alignment Messages, Page Range Printing etc.

  • I-O's award winning SCS printer emulations

  • Increases print speeds

  • Easy to install and use, includes I-O's Configuration Utility software

High Speed Printing

Attached to a network, the 5760e supports almost any network attached printer. It supports printing up to 250 pages/min per printer. Whether printing from an IBM Power System (System i, iSeries, AS/400) or a zSeries - S/390, fast printing can be obtained with laser printers supporting port 9100. In addition to the Ethernet gateway connection, the adaptio Gateway will also support one locally attached USB printer.

Full Printing Control from IBM Host

The 5760e offers the same reliable, full-function IBM host printing and control found with traditional direct attached Twinax/Coax printers. With the 5760e Print Server Gateway your printers are configured as true "Device" printers and not "Remote Out Queue Printers".  Your IBM host print jobs are not lost in the black hole of "Remote Out Queue" LAN printing. The 5760e provides bi-directional communication between the printer and the IBM host, allowing error reporting and page range printing.

Some of the print queue features you will get back are:

  • Page Range Printing - Permits users to print select page ranges from large documents and reports.

  • Forms Alignment Messages -  Get the forms alignment messages you are familiar with you need for precise alignment of your pre-printed forms, something you do not get with Remote Out Queue printing

  • Printer Error Reporting - Prevents loss of IBM Host print data by providing same level of print status reporting as a direct system attached Twinax or coax printer.

  • True IBM iSeries AS/400 and S/390 zSeries Printer Emulations - Permits full-function IBM Host printing on the attached LAN printer. 3812-01 (SCS) laser, 4214 matrix and 5224/25/56 matrix printer emulations.

  • No Host Print Transform - No need to waste valuable processor cycles on EBCIDIC to ASCII translation.  The 5450e / 5430e handles that all with it's own embedded RISC processor.

  • Simultaneous Multi-Host Printing - Maximizes printer utilization by supporting concurrent printing not only from the IBM Hosts but from Windows, UNIX, etc.

Easy to Use

I-O's Configuration Utility software is included with every 5760e. Configuration is made easy through the use of a menu-based utility.

Click here for more information on the 5760e Print Server Gateway

Purchase On Line

Please call us at 1-908-688-8100 or 1-800-597-2525
for Alternative Solutions for Out of Stock Products







Technical Specifications

SPECIFICATION For iSeriesAS/400 For IBM zSeries S/390
Protocols

TCP/IP, TN5250e,

TCP/IP, TN3270e

SCS Emulations

IBM 3812-1, 4214, 5224, 5225, 5256

IBM 3287

System Requirements

OS/400 Release 3.1 or higher

OS/390 or MVS:  TCP/IP Version 3.1 or higher

Supported printers

Ethernet Connection: Port 9100, PJL unsolicited messages, PCL 3/5e

Windows Printers: Laser and Dot-matrix via output.
Direct 9100 Port: Laser and dot-matrix printers that accept port 9100 Communication, PJL unolicited messeges
Print Drivers: SCS - PCL 3, Epson, IBM Proprinter, Generic

Ethernet Connection: Port 9100, PJL unsolicited messages, PCL 3/5e

Windows Printers: Laser and Dot-matrix via output.
Direct 9100 Port: Laser and dot-matrix printers that accept port 9100 Communication, PJL unolicited messeges
Print Drivers: SCS - PCL 3, Epson, IBM Proprinter, Generic

Printer Connections

Ethernet Connections:  Auto-sensing 10/100BaseT
Printer Ports: One USB Port

General

Ethernet Connections:  Auto-sensing 10/100BaseT
Printer Ports: One USB Port
Power Supply: 100-240 auto-switching / 12V DC
Configuration: I-O Configuration Utility installed on a PC

Plus a wide range of additional features that boost productivity and performance.

Features

Benefits

High Speed Printing, up to 250 ppm

Data conversion is accomplished at the 5760e Gateway and sent to the printer via the Ethernet Network. The Adaptio Gateway takes advantage of high-speed, high-performance printers.

Supports up to 10 Network Attached Printers

Up to ten (10) printers can be configured as  SCS virtual printers.

AFP/IPDS & SCS Printing

IBM host printing to network attached printers. Laser Printers/Copiers/MFPs can be configured as SCS Printers.

Full IBM Host Control of Print Jobs

The 5760e Gateway provides a bi-directional communication between the host and the printer, via port 9100 and PJL commands.

Remote Printing

The printers can be attached locally or remotely via a WAN or VPN network. Printers do not need to be directly attached or physically next to the 5760e Gateway.

One USB Port

One printer can be directly attached to the 5760e Gateway for IBM host print jobs.

I-O's Award Winning Printer Emulations

All functions such as True Print Complete, SCS Duplex, Page Offset, COR, Fonts, Barcode, are fully supported by the 5760e Gateway.

Download the Datasheet on the I-O 5760e (Adaptio) Gateway Gateway
