Have Twinax CRTs & Printers to connect to your new System i i5 Power5 or Power6?? Click here to see just how easy it is.

MSCS - Multiple System Console Solution
Multiple Series i (i5, iSeries AS400)
System Consoles over TCP/IP

Full System Console Control for Multiple i5 and iSeries
or Combination of i5, iSeries, AS/400^�s and LPARs
From Anywhere with an IE Web Browser or
Over a TCP/IP LAN, WAN or Virtual Private Network (VPN) with SSL TCP/IP

Overview With the TwiNetTC you can eliminate the problems of administering the System Console function in a multiple iSeries AS/400 environment. The Multiple System Console Solution (MSCS) configuration will make System Console administration of multiple AS/400s as simple as opening a Window on a LAN attached PC. The System Console is typically a "dumb" Twinax Display Station attached to Port 0 / Address 0 of your iSeries AS/400 or LPAR. The System Console is the only terminal that can:
	Click on image above for more screenshots.

	Perform System Console only System Maintenance and Configuration Procedures (Restricted State)
	Execute System Backups (SAVSYS)
	Respond to "System Console Only" messages

In the multiple system environment, this requires one terminal per iSeries. It also requires that an operator be on site to respond to the message, or perform the particular procedure that can only be executed from the System Console. When the operator is not on site, it usually requires a phone call or a page to a standby operations person who would need to either travel to the office or diagnose the problem over the phone.

TwiNet MSCS will allow these i5, iSeries AS/400 or LPAR "System Console Functions" to be handled from anywhere on your LAN, WAN or VPN or even securely over the public Internet.

This also includes dial-in to a network attached Remote Access Server (RAS) such as a MultiTech RAS Server, Perle 833i, or a BOSaNOVA LanLynk. This eliminates the necessity for the iSeries operator to be at the iSeries system location for the System Console - the computer room.

Featured Highlights

Simple Management of your System Consoles - Manage up to 24 separate i5, iSeries AS/400s and/or LPARS from a single TCP/IP PC anywhere on your LAN / WAN / VPN / Internet

Secure Access to your System Consoles - Use your Web Browser (Active-X) to run your System Console from anywhere

The Sessions are "kept alive" on the TwiNetTC - Simply reconnect if you lose your connection and pick up where you left off. It keeps the Twinax connection active even if there is an interruption in the TCP/IP network traffic to the TwiNetTC. This assures that when a display session is reconnected, the session is exactly as it was when the disconnect occurred.

DOES NOT Require TCP/IP to be running on the i5, iSeries or AS/400 - can be used to restart TCP/IP from anywhere.

A True Twinax-to-TCP/IP Gateway - Supports up to seven Twinax Display or Printer sessions (Addresses 0 through 6) on your LAN PCs with the included TwiNet Gold Client Software for each TwiNet Gateway installed

Simple Setup - Web based configuration and setup

Easy To Install Client Software - TwiNet Gold Client Software included

Click here for More Information on the TwiNet Multiple System Console Solution
Download the TwiNetTC Data Sheet

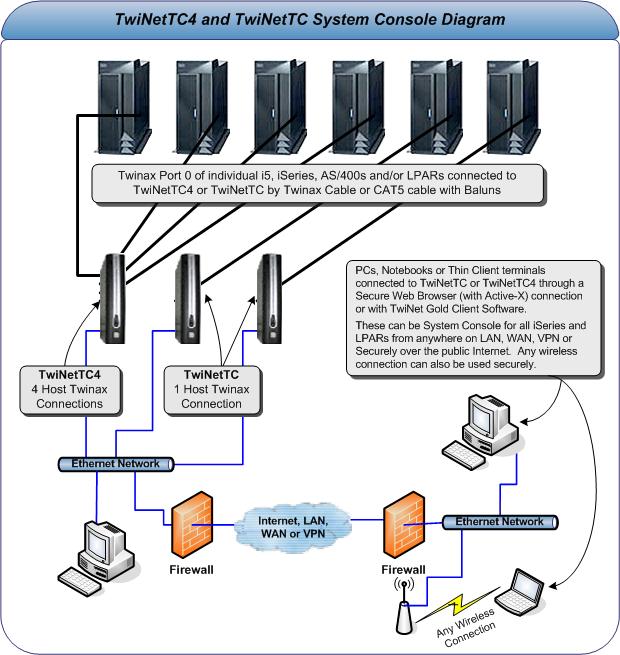

Multiple System Console Solution (MSCS) Diagram

Click here for More Information on the TwiNet Multiple System Console Solution

Applications for MSCS with TwiNetTC

	Control Multiple i5, iSeries AS/400s and /or LPARs from a single "System Console"
	Control an AS/36 and AS/400 from the same System Console - Allows upgrading from one system to a new system to be more convenient. You can also configure additional sessions from each system, up to seven (7) from each TwiNet SNA Gateway.
	Allow a local network PC to be System Console for an i5, iSeries or AS/400 at a remote location - Improves system operation capabilities at other locations without the need for a system operator.
	Allow System Consoles to be anywhere on your LAN / WAN / VPN.
	Remote Printer Gateway - Allows printing to a specific device (ie: PRT10, etc.) from any remote connection.

Some Features of MSCS with TwiNetTC

Flexible Twinax connection means increased productivity. The TwiNetTC solution uses a Twinax connection to the host IBM midrange system which means that it can support the IBM i5, iSeries, AS/400, System/36, Advanced Series/36 and Twinax Remote Controllers. Since TwiNetTC provides a single point of contact to the midrange host, there is less configuration and operating overhead, providing better overall host performance.

Simple, intuitive installation and configuration. On the PC side, a single protocol can be used for both LAN and host PCs, and since TwiNetTC is a native Twinax gateway, it does not require the overhead and configuration complexities of an APPC router. And the TwiNet Gold Client software installs quickly and easily, using industry-standard LAN interfaces.

TwiNetTC Twinax to TCP/IP Gateway

The picture on the left shows a standard TwiNet installation. The IBM Host can be any S/3X, AS/400 or Remote Control Unit with a Twinax attachment installed. TwiNet can be installed either close to the Host or close to the Clients, using the existing Twinax or UTP cabling very good for long distance connection (up to 5000 feet).

TwiNetTC supports any Windows Vista, XP or Windows 2000 PC.

Technical Specifications

Specification

Description

Operating System

PC Side:	Windows Vista, XP, 2000
Host Side:	AS/400 - iSeries - i5: V3R2 to V6R1
	Advanced Series/36: All
	System/36: All

Hardware Requirements

Twinax Workstation Controller with available host connection.
Port 0 required for System Console functionality

Connectors

1 RJ 45 10BaseT, 100BaseT (auto-sensing)
TwiNetTC - Single Twinax Y-Cable with Cable-thru capability for connection to Twinax Host Port
TwiNetTC4 - 4-port "quad-cable" with 4 Twinax Host Connections

LEDs

Power, Link, 10/100, Check, Alert, Packet and Collision.

Main Power

External Power Supply: 100-240V AC 50-60Hz Input / 5V DC Output

Warranty

One Year

Click here for More Information on the TwiNet Multiple System Console Solution

Ordering Information

ITEM NO.	PRODUCT	PURCHASE
CMTWINETTC	TwiNetTC SNA Gateway One (1) Twinax Host Connection 7 Twinax Device Addresses 1 required for each i5, iSeries AS/400 or LPAR host port connection
CMTWINETTC4	TwiNetTC4 SNA Gateway Four (4) Twinax Host Connections 28 Twinax Device Addresses 1 required for each four (4) i5, iSeries AS/400 or LPAR console or host port connections
CMTWINETTC100	TwiNetTC100 TelNet Gateway 100 TN5250e/TN3270e Telnet Sessions Display Sessions and Printer Sessions (no Twinax connections)

Download the TwiNetTC Data Sheet

MSCS TwiNetTC Information Request Form

Select the items that apply, and then let us know how to contact you.

Send product literature
Send company literature
Have a salesperson contact me
My Need is: Immediate 30 Day 60 Day 90 Day

I'm Interested In Information on:
Type of AS400/Mainframe/Host System:

Name
Title
Company
Address 1
Address 2
City, State/Province	,
ZIP/Postal Code
Country
E-mail
Phone	Ext.
FAX


How did you hear about this product ?

For more information on TwiNet, contact us at 800-597-2525
