5476, 5477 and 5488v
Twinax Display Stations for iSeries, AS/400 and S/36



An InfoWindow Compatible
Modular Twinax Display Station/Terminal
for the i5, iSeries, AS/400 and S/36

Overview

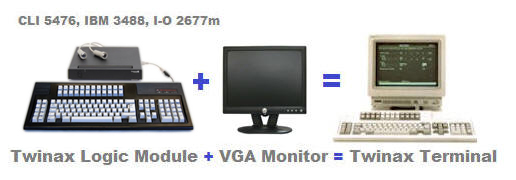

CLI was a leader in the development of unique modular display stations that use virtually any standard PC-type VGA or SVGA color, monochrome or LCD monitor. The CLI 5476, 5477 and 5488 Twinax terminals feature the ergonomics and durability that have made CLI famous.  Click here for technical specifications on these models.

These three models are no longer manufactured new but are available as refurbished logic units with new 122-key keyboards.  Other refurbished Twinax terminals are available .  Please click on the following links:

If your company is looking for an Ethernet connected display station solution, the MT2301 Thin Client Terminal addresses today's conversion of Systems from Twinax/Coax to Ethernet & TCP/IP networks where simple, cost effective, functional solutions are required to address character based terminal requirements.  The AG6601 Thin Client Terminal provides dual access to Windows applications and legacy systems (midrange, Mainframe and Unix hosts).

Click here for addition information on the
CLI 5476, 5477 & 5488 Twinax Display Stations

Compatibility

The CLI 5476 is completely compatible with IBM 3476 InfoWindow and also includes additional emulations for 3197C and 3197D.  The 5476 is only available as a refurbished unit. We offer new 122-key keyboards for all refurbished models.

The CLI 5477 is completely compatible with IBM 3477 InfoWindow.  The 5477 also includes emulations for 3197C, 3197D and 3476 InfoWindow.  The 5477 is only available as a refurbished unit.

The CLI 5488 is compatible with the IBM 3488 which supports Shared-Addressing, the ability to use 4 display sessions while using only 1 host address on the iSeries or AS/400. The CLI 5488V can also emulate IBM 3197C, 3197D, 3486 InfoWindow II, or 3487 InfoWindow II Display Stations. The 5488 is only available as a refurbished unit.

Click here or on picture at right for technical specifications on all three models.

Affordability

CLI Modular Display Station is designed for easy Twinax connection to the IBM iSeries, AS/400 and S/3X. With its features and reliability, it is the most cost effective solution in the market. Keeping in mind that this unique modular design also provides real protection of your investment for future migration to PCs and Thin Client Terminals.

Configuration Flexibility

As with all of CLI's modular display stations, you select from a wide array of keyboard and monitor styles for individual application or user requirements.  Whether you need a compact terminal with a 9" monitor and compact keyboard, or a large screen color model, we can provide the proper terminal for your particular requirement.

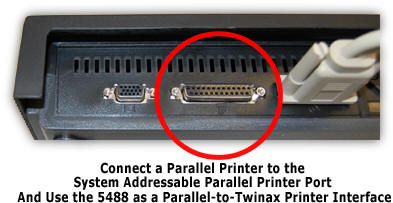

Integrated Parallel-to-Twinax Protocol Converter

With the built-in System Addressable Parallel Printer Port, you can turn almost any Parallel Printer (laser, matrix, thermal, etc.) into a "Twinax" printer. By connecting a Parallel Printer to the the Parallel port and Assigning one of the 7 available Twinax addresses as a Printer Address, your Parallel Printer will act just like a standard Twinax Printer (SCS only). You can even use the 54XX as a standalone Protocol Converter that only uses one Twinax address.  All CLI Twinax Modules have this built-in capability - the 5476, 5477 and 5488v.


Investment Protection

The base logic unit, monitor, and keyboard of CLI modular display stations are separate units, which can be mixed and matched to your requirements. The PC compatible monitor and keyboard can be used by any PC or Thin Client Terminal. The base logic unit can be configured as a stand alone protocol converter to drive your desktop or system printers.

Purchase On Line

Click here for addition information on the
CLI 5476, 5477 & 5488 Twinax Display Stations

Hardware Specifications

Hardware Specifications & Features

5476

5477

5488

Total Sessions

7

7

4/7

Maximum Display / Printer Sessions

7/1

7/1

7/1

Shared Addressing

No

No

Yes

IBM 3197C (Color) / 3197D (132 Column Mono) Emulation

Yes

Yes

Yes

IBM 3476 InfoWindow Emulation

Yes

Yes

Yes

IBM 3477 InfoWindow Emulation

No

Yes

Yes

IBM 3486 / 3487 / 3488 InfoWindow II Emulation

No

No

Yes

AS/400 , System/38, System/36, AS/36

Yes

Yes

Yes

IBM 5294, 5394, 5494 Remote Controllers and Compatibles, Xip/Xip+, eTwinax

Yes

Yes

Yes

4214, 5224, 5256, 5219, 3812 Printer Emulation

Yes

Yes

Yes

Host Addressable / Local Printer Port

Yes

Yes

Yes

HP LaserJet, IBM, Epson, Okidata, Panasonic, Barcode and Compatible Printers

Yes

Yes

Yes

Custom Printer Support

Yes

Yes

Yes

ASCII Pass-thru and HEX Transparent Mode Support

Yes

Yes

Yes

Computer Output Reduction (COR) Support for Laser Printers

Yes

Yes

Yes

Screen Print with Trim

Yes

Yes

Yes

Split Screen (In Monochrome): 25 & 17

Yes

Yes

Yes

Split Screen (In Color): 25 & 25

Yes

Yes

Yes

122-key Typewriter 5250 Style Terminal Keyboard Support

Yes

Yes

Yes

101-Key, 102 Key, 84-Key Keyboard Support

Yes

Yes

Yes

Play/Record and Pause/Quit Functions with 1520 Keystrokes Buffer with Erase Function

Yes

Yes

Yes

Use Any Size Color or Monochrome PC VGA or SVGA Monitor as Display Screen

Yes

Yes

Yes

Reverse Image with Overscan Display (Monochrome Monitor)

Yes

Yes

Yes

256K Colors Customizable Color Palette

Yes

Yes

Yes

Selectable Column Separator Style (Bar or Dot Style)

Yes

Yes

Yes

Selectable Character Set for Display (Serif or Sans Serif)

Yes

Yes

Yes

Adjustable Auto Dim Timer with Power Saver

Yes

Yes

Yes

Flash Alarm for Industrial or Loud Environment

Yes

Yes

Yes

80 Columns X 24 Rows (1920-Character Standard Display)

Yes

Yes

Yes

132 Columns X 27 Rows (3564-Character Standard Display)

Yes

Yes

Yes

Vital Product Data Support

Yes

Yes

Yes

Allows Dedicated Bar Code Reader Input (No Keyboard Required)

Yes

Yes

Yes

Barcode Decoder and Scanner Compatibility

Yes

Yes

Yes

Extended Character Buffer

No

No

Yes

Mouse Support, Hotspots

No

No

Yes

Built-in Calculator

No

No

Yes

Temperature: 50?F-105?F (10?C-40?C)

Yes

Yes

Yes

Relative Humidity 8 - 80%

Yes

Yes

Yes

Power: 100-127 VAC, Single Phase 3-Wire 60 Hz, 0.2 AMPS @120 VAC
Power: 210-230 VAC, Single Phase 3-Wire 50 Hz, 0.4 AMPS @220 VAC

Yes

Yes

Yes

Dimensions: 12 1/2"W x 12 1/4"D x 2 1/4" H

Yes

Yes

Yes
