Affirmative 1225U & 1229U 122-Key Terminal Keyboards for PCs and Thin Client Terminals

122-Key 5250 & 3270 Terminal Style Keyboards for PCs
and Thin Client Terminals with a True IBM Terminal Layout

Overview

The new Affirmative 1225U and 1229U 122-key Terminal Style Keyboard (USB) can be used with any PC or Thin Client Terminal*. It has the same layout as the Twinax or Coax Terminal your are replacing. As a result organizations can look forward to regaining the benefits of true terminal-style productivity. Click here or on image below for large image of keyboard.

Click on image above for large image of keyboard.

1225U - iSeries 5250 Terminal Style 122-Key USB Keyboard (Click Here to see Keyboard Layout)
1229U - zSeries 3270 Terminal Style 122-Key USB Keyboard (Click Here to see Keyboard Layout)

Click here to download the Affirmative 1229U 122-Keyboard Datasheet

This 122-key keyboard provides a seamless transition from Twinax and Coax "dumb terminal" green screen terminals such as the IBM InfoWindow 3476, 3477, 3481, 3482, 3486, 3487, 3488 and compatibles from CLI, Decision Data, I-O Corporation, Idea, Memorex and Praim.

When moving from the 122-key layout to a standard PC keyboard, there are up to 36 new key combinations to be learned to perform the same tasks performed with a single keystroke on the Twinax or Coax terminal. This lack of familiarity can produce a big loss in production and excess errors that would not be occurring if the user had their old, familiar keyboard. Click here or on the image at the top of the page for a larger image of the keyboard.

With the Affirmative 1225U and 1229U 122-key keyboards, there is virtually no retraining when moving users from the old Twinax or Coax terminals to the new Ethernet connected device, whether it be a PC or Thin Client Terminal. The user will have the same layout and heavy duty "clicky" keystroke feel as on the terminals being replaced. No need to learn the new key combinations a standard PC keyboard would require.

For a 3270 style Driverless USB 122-key keyboard for the zSeries environment please click here for more information.

Click here for more information on the Affirmative 1225U and 1229U 122 Key Keyboard

Advantages

This keyboard works perfectly in both the PC and most Thin Client environments.

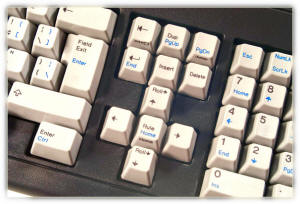

Any keys that have different functions are labeled with both functions. The 5250/3270 keys are labeled in black, jus like a Twinax or Coax terminal. Any PC functions are labeled in blue.

The image at left shows this clearly as well as a number of the 5250 keys only the 122-key keyboards have such as New Line, Field Exit, Dup,Roll Up, Roll Down, etc. Some of the 3270 keys include PA1, PA2, PA3 as well as others.

Main Benefits

Direct USB Connection with full use of all 122-Keys
With the proprietary Affirmative keyboard driver, you will be able to use and exact terminal keyboard layout. No operator retraining.
Simple keyboard map file customization for TN5250e emulations with Keyboard Mapping, such as IBM Client Access and Personal Communications (PCOMM) enhances the functionality.

Supported Environments

PCs - Windows 8, Windows 7, Windows Vista, Windows XP
Thin Clients* - Windows 8, Windows 7, WES, WES7, XPe

*NOTE: Thin Client Terminals must be able to load a standard PC-type driver on the Thin Client Terminal. For CE.NET and Linux Thin Client Terminals click here for the Affirmative 1221TD Driverless keyboard.

Click here for more information on the Affirmative 1225U and 1229U 122 Key Keyboard

Purchase On Line

MODEL	DESCRIPTION - See bottom of page for proper keyboard drivers	PURCHASE
1225T (PS/2)	Affirmative 1225T 122-Key 5250/PC Keyboard - PS/2, Black Requires Windows Device Driver to be installed on PCs & Thin Client Terminals 5250/PC Keyboard with PS/2 connection with tactile "clicky" feedback keys. The same layout, look, feel and touch of the 122-key keyboards found on IBM 347X and 348X Display Stations. This is a 3196/3197 style IBM terminal like keyboard with 122 Keys (24 Command Keys) used as a standard PC keyboard replacement. All PC keys are marked in blue and all 5250 keys are marked in black. It has all AS/400 terminal keys such as New Line key, Field Exit key, DUP key, and others. This is to assist in the transition from a non-programmable workstation to an intelligent workstation. PLEASE NOTE: The 1225T will NOT work with PS/2-to-USB Adapter Cables.	Call Us At 1-908-688-8100 or 1-800-597-2525 For Availability
1225U (USB)	Affirmative 1225U 122-Key 5250/PC Keyboard - USB, Black Color Requires Windows Device Driver to be installed on PCs & Thin Client Terminals 5250/PC Keyboard mini-DIN with tactile "clicky"feedback keys for the same look, feel and touch of the 122-key keyboards found on IBM 347X and 348X Display Stations. This is a 3196/3197 style IBM terminal like keyboard with 122 Keys (24 Command Keys) used as a standard PC keyboard replacement. All PC keys are marked in blue and all 5250 keys are marked in black. It has all AS/400 terminal keys such as New Line key, Field Exit key, DUP key, and others. This is to assist in the transition from a non-programmable workstation to an intelligent workstation.	Call Us At 1-908-688-8100 or 1-800-597-2525 For Availability
1225TR Refurbished	Affirmative 1225T - PS/2, Black - Refurbished Requires Windows Device Driver to be installed on PCs & Thin Client Terminals (replacement for 1220T)	Call Us At 1-908-688-8100 or 1-800-597-2525 For Availability
1227T	Affirmative 1227T 3270/PC Keyboard PS/2 Keyboard Connector and Tactile Feedback Keys NO LONGER AVAILABLE - 1229T is the Direct Replacement for this part number	Replaced with AFR1229T
1229T (PS/2)	Affirmative 1229T 122-Key 3270/PC Keyboard - PS/2, Blacku Requires Windows Device Driver to be installed on PCs & Thin Client Terminals This is a 3481/3482 style IBM type "clicky" keyboard with 122 Keys (24 PF Keys) used as a standard PC keyboard replacement. All PC keys are marked in blue and all 3270 keys are marked in black. It has all 3270 terminal keys such as Field Exit key, DUP key, PA1, PA2, PA3 and others. This is to assist in the transition from a "dumb" Coax Terminal to PC or Thin Client Terminal running 3270 Terminal Emulation. Tactile feedback "clicky" keys provide the same look, feel and touch of the 122-key keyboards found on IBM 347X and 348X Display Stations. PLEASE NOTE: The 1229T will NOT work with PS/2-to-USB Adapter Cables.	Call Us At 1-908-688-8100 or 1-800-597-2525 For Availability
1229U (USB)	Affirmative 1229U 122-Key 3270/PC Keyboard - USB, Black Color Requires Windows Device Driver to be installed on PCs & Thin Client Terminals This is a 3481/3482 style IBM type "clicky" keyboard with 122 Keys (24 PF Keys) used as a standard PC keyboard replacement. All PC keys are marked in blue and all 3270 keys are marked in black. It has all 3270 terminal keys such as Field Exit key, DUP key, PA1, PA2, PA3 and others. This is to assist in the transition from a "dumb" Coax Terminal to PC or Thin Client Terminal running 3270 Terminal Emulation. Tactile feedback "clicky" keys provide the same look, feel and touch of the 122-key keyboards found on IBM 347X and 348X Display Stations. (Click here to see keyboard layout diagram)	Call Us At 1-908-688-8100 or 1-800-597-2525 For Availability
Click Here for more information on Affirmative 122-Key Keyboards
NOTE: Affirmative 122xP and 122xU 122-key keyboards (unless described as driverless) require device driver software to run with all emulation products except BOSaNOVA (Plus, Desktop, Client, TCP/IP). These drivers need to be installed in your Windows operating system to intercept the custom keyboard scan codes to correctly pass them to your IBM host computer (AS/400 or Mainframe) or to automatically modify the keyboard profile to conform to the 5250/3270 standard. Affirmative 1225T and 1229T PS/2 Keyboards work without drivers on Affirmative Thin Client Terminals with PowerTerm Terminal Emulation and Computer Lab International (CLI) Thin Client Terminals with PS/2 keyboard connections with TermPro Terminal Emulation.
