Transition Networks
PowerStar IV 5250 Hub
for IBM iSeries and AS/400
|
|
|
|
|
PLEASE NOTE:
The Transition Networks PowerStar Active Star Hub is no longer manufactured
and is only available as a Refurbished Product.
Please call us at (800)597-2525 for
availability. |
PowerStar IV AS400
14-port Active UTP Repeater
Overview
The
PowerStar IV active repeater is a cost-effective way to convert a twinax
daisy chain topology to the greater reliability and flexibility of an
unshielded twisted pair star topology.
Call us
at (800)597-2525 for other Transition networks iSeries and AS/400 wiring
products such as twinax-to-fiber converters and twinax multiplexers.
Features
-
Connects
two hosts and 14 devices in a star configuration via twisted
pair cable at a total distance of up to 1520 meters (5,000
feet) from the host.
-
Provides
true start sequence regeneration and line synchronization.
-
Each port
has separate transceiver circuitry and is isolated from the
other ports, so disconnecting or removing one device does not
affect the other devices.
-
Automatically
compensates for speed differences among 5250 devices.
-
Expansion
slot and Slide-In-Cards (SICs) let you extend network
distances even further. An optional modular Twinax SIC extends
the total distance from the controller to each workstation to
1520 meters. Or the optional Fiber Optic SIC extends that
distance to 3,000 meters.
(back to top)

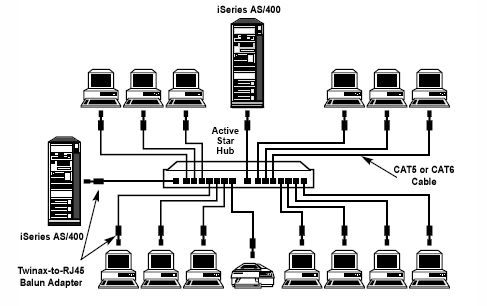

Application
(back
to top)
Ordering Info
| Product Number |
Description |
| PSIV-2/14-45 |
2
host / 14 device AS400 repeater; RJ-45 uplink for devices (760 m);
Slide-In-Card slot uplink for host connection |
| PS-F-SIC |
Fiber
Optic Slide-In-Card (3 km) |
| PS-T-SIC |
Twinax
Slide-In-Card (1,520 m) |
(back to top)
Specifications
| SPECIFICATIONS |
Feature / Description |
| System
Environment |
| IBM
System 34, 36, 38, & AS400 and associated controllers |
|
| Devices |
| All
5250 and compatible devices supported by IBM systems |
|
| Connectors |
| PSIV-2/14-45 |
14
RJ-45; |
| |
One
expansion slot for optional Slide-In-Card |
| PS-T-SIC (optional) |
2
twinax |
| PS-F-SIC (optional) |
2
fiber optic ST |
| PS-F-SIC
Fiber Optic Connector Specs: |
| Min
TX PWR |
-19.0
dBm |
| Max
TX PWR |
-14.0
dBm |
| Sensitivity |
-24.0
dBm |
| Max
In PWR |
-10.0
dBm |
| Link
Budget |
5.0
dB |
|
|
| Cable |
| 22 or
24-gauge unshielded twisted pair; 100 ohm twinax;
62.5/125µm duplex fiber |
| |
|
| Maximum
Distances |
| Twisted
Pair |
760 m
(2,500 ft.) |
| Twinax |
1,520
m (5,000 ft.) |
| Fiber
Optic |
3,000
m (10,000 ft.) |
| |
|
| Data
Rate |
| 1
Mbps or 1.038 Mbps, auto sensing |
|
|
|
| Unit
LED |
| Power:
Lit for normal operation |
| |
|
| Port
LEDs |
| Line
sync |
Lit
for normal operation |
| Error |
Blinks
when parity error in the data/address frame occurs |
| |
|
| Power |
Internal
universal input;
90 – 264VAC, 47 – 63Hz, 40W |
| |
|
| Environment |
| 0 –
50°C; 5% – 90% humidity non- condensing; 0 – 10,000
ft. altitude |
| |
|
| Dimensions |
Width:
17.0" (432 mm)
Depth: 6.0" (153 mm)
Height: 1.625" (42mm) |
| Shipping
Weight |
8
lbs. (3.6 kg) |
| Compliance |
UL
listed; FCC & CISPR Class A; CE Mark |
| Warranty |
Lifetime |
(back
to top)
Click
here for more information on AS/400 & iSeries Wiring Products
|
