LAN-RPC IP Print Server
Connect a Twinax or Coax Printer To Your IP  Network

Use Your Twinax & Coax Printers over TCP/IP


PLEASE NOTE
The LAN-RPC Twinax/Coax Print Server has been
discontinued.  It is available as a refurbished product.  The direct new  replacement product is the I-O Corporation LAN-RPC+ Twinax-to-IP Print Server.  Please click here to be taken to the LAN-RPC+ Twinax Print Server page.



Overview


The I-O LANRPC Print Server protects printers when migrating to TCP/IP Ethernet. It allows Twinax or Coax IPDS, SCS, or SCS/DSC printers to be connected to an Ethernet network.

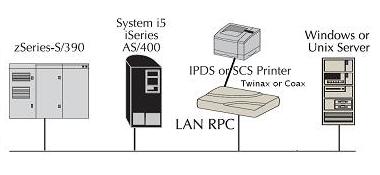

You simply connect your Twinax or Coax system printer directly to the I-O LANRPC. Once this is done, you will be able to address the printer via TCP/IP from an IBM AS/400 or 3270-type mainframe. The attached printer can be a laser, dot-matrix or line printer. The I-O LANRPC will reliably communicate the IPDS data received over the TCP/IP Ethernet link to the attached Twinax or Coax cable.



With an I-O LANRPC a non-IPDS (SCS) Twinax or non-IPDS (SCS/DSC) Coax system printer becomes available to virtually any host on the Ethernet network. This includes AS/400, 3270-type mainframe, Unix, Windows XP / 2000 / 98 / 95 and NT, and Novell host systems. All host systems can simultaneously communicate with the I-O attached system printer.



Line and matrix printers configured via TCP/IP, AnyNet or SNA on an AS/400 offer page range printing support and posting of the FORM ALIGNMENT message. The latter is a particularly valuable feature when printing on pre-printed forms or stationary such as checks and invoices.



With I-O?s Configuration Utility, the initial setup and configuration is a painless and straight forward task. Once an IP address has been assigned, administrators can easily configure even remote I-O print servers directly from their desktop.





Features Benefits
Investment Protection Reliable and expensive legacy printers are given a new lease on life by connecting over Ethernet to their host.
One-Model Solution The LANRPC supports both Twinax and Coax hosts and printers (SCS,SCS/DSC or IPDS).
Auto-configuration SNA and AnyNet protocols allow the AS/400 to automatically recognize Twinax attached SCS printers.
TN5250e, AnyNet and SNA Support Page Range Printing and form alignment messages for line and matrix printers.
One-Model Solution The LANRPC supports both Twinax and Coax hosts and printers (SCS, SCS/DSC or IPDS).
PPR/PPD AFP/IPDS printers are connected to the host via true TCP/IP protocol.
ASCII to SCS SCS Twinax or SCS/DSC Coax printers can now serve as LAN printers.
Configuration Utility Simple LANRPC configuration from a PC on a local or remote network.
10/100BaseT Auto-Sensing Automatic adapttion to your network speed requirements.
FLASH Memory Convenient field-upgrades to take advantage of the latest enhancements.
Simultaneous, Multi-Protocol Printing Universal access to SCS and SCS/DSC system printers optimizes your printer investment.

 Please click here to be taken to the LAN-RPC+ Page





|
