 The
PCI Emulation Kit to Connect Your Windows 9X, NT, 2000,
Me & Windows
XP PCs to your AS/400 and S/36 Hosts
Description
The new YEStwin 5250 PCI
adapter allows attachment of PCs with PCI expansion slots
to IBM S/3X and AS/400 Host Systems supporting the twinaxial protocol.
This adapter can be attached to the host either locally through the
Host twinaxial workstation controller, or remotely via an IBM Remote

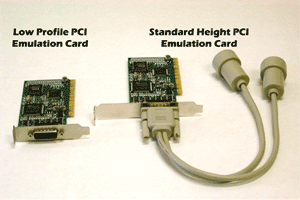

Control Unit or compatible. (Click on picture
for detailed specifications)
Supports the new IBM 5250 Express Data Stream for nearly four times more media throughput
than
other standard twinaxial devices.
Click
here for more information on the YEStwin PCI Emulation Kit
Features
 |
Plug and Play for easy
installation and automatic configuration |
| Available in a low
profile PCI card for PCs that take the new, smaller PCI
expansion cards. |
|
Twinax attachment of
any PC with a PCI expansion slot to IBM S/3X
and AS/400 host systems |
|
Supported by IBM's most
popular 5250 emulation programs |
|
No
switches or jumpers. It automatically configures itself in a
compliant PC and dynamically adjusts
as new adapters are added or deleted. Fully Plug and Play compliant. |
|
Supports
up to 7 SNA sessions (7 physical addresses) or 32 APPC/5250
sessions (1 physical address) |
|
Supports TCP/IP
applications over existing twinaxial cabling to your AS/400 host |
|
Bundled with YEStwin-Suite,
a useful collection of software modules,
including powerful 32-bit emulation
program. These modules have been specifically designed to
work with Windows 2000 and Windows ME with full
support for Windows 95/98/NT. |
|
Built-in support for
the YESboard 122-key, 24-command key
AS/400 style keyboard for PCs |
The new YEStwin 5250
PCI adapter allows attachment of PCs with PCI expansion
slots to IBM S/3X and AS/400 Host Systems supporting the twinaxial
protocol. This adapter can be attached to the host either locally
through the Host twinaxial workstation controller, or remotely via an
IBM Remote Control Unit or compatible.
While maintaining compatibility with the old
standard 5250 Data Stream, this new adapter meets all the requirements
of the new IBM 5250 Express Data Stream. The IBM 5250 Express
Data Stream incorporates two separate modes: 2-Mbps mode, and
compressed mode. The combination of both modes allows data throughput
that is nearly 4 times greater than other non-Express Data Stream
twinaxial devices.
The YEStwin 5250 PCI
adapter offers the convenience of Plug and Play, making it easy to
install and configure. So, you don't have to configure memory and I/O
addresses at installation; the PC automatically configures the adapter
for you.
The YEStwin adapter comes bundled with the YEStwin-Suite, a
useful collection of software modules plus two powerful 32-Bit
emulation programs. YEStwin-Suite offers a complete
suite of applications needed by today's users that includes the
following:
|
TwinXpress-Emulation |
|
TwinXpress-Link |
|
TwinXpress-LAN |
|
TelNet-Emulation
and FTP file transfer |
The YEStwin is also compatible with IBM's most popular emulation programs
including Client Access, Client Access Express, and Personal
Communications (PCOM), and works with NetManage NS/Router, for easy
access to APPC connections.
Ordering Information
|
ITEM NO.
|
DESCRIPTION
|
CARD TYPE
|
WINDOWS
VERSIONS
|
|
AFR2401
|
YEStwin PCI
Emulation Kit
|
32-Bit PCI
|
Windows XP / 2000 / ME NT / 98 / 95
|
AFR2401LP
|
YEStwin PCI
Emulation Kit - Low Profile
|
32-Bit PCI
|
Windows XP / 2000 / ME NT / 98 / 95
|
Click
here for more information on the YEStwin PCI Emulation Kit
Affirmative
YEStwin PCI Emulation Cards
(Back to top)
| Item |
Feature
/ Description |
|
Terminal
Session
Characteristics
|
Supported Display
Emulations: 5251, 5291, 3196, 3180-2, 3197-D, 3197-C, 3477FC
Supports 14 resident
national keyboard templates.
Support for Affirmative YESboard
122-key 24-command key Keyboards (no driver required)
Supports EURO symbol.
Includes GUI, Hotspots,
Macros and programmable EasyPad.
Includes tools for keyboard
mapping and attributes editing.
Cursor and fonts
selectable.
Includes Cut/Copy/Paste
feature.
Includes Record/Playback
feature. |
|
Printer
Session
Characteristics
|
Supported
Printer Emulations: 5256, 5224, 5225, 4214, 4234, 5219-D,
3812.
Support for continuous forms,
multi drawers, envelope, manual feeders, simplex/duplex, auto page
orientation, and COR (Computer Output Reduction).
Supports CPI, LPI override and LQ,
NLQ
Selectable Printing mode:
Windows
Driver (GDI, graphic mode)
Pass-Through Driver (PTD, text mode): choice of pre-configured, cutomizable printer drivers.
Supports Hex Pass-Through (HPT)
feature, with customizable leading and ending
sequences
Supports EURO symbol |
|
Hardware
Specifications
|
|
Adapter
Cable:
|
Y-Cable
Adapter Cable Included
|
|
Physical
Specifications
|
Width:
2.4 in / 61 mm
Depth: 4.8 in / 122 mm
|
|
Operating
Temperature
|
50°
to 104°F / 10° to 40° C
|
|
Relative
Humidity
|
8%
to 85% (non-condensing)
|
|
Certifications
|
FCC,
CE –EN 55022 – EN 50082-1
|
|
|
Warranty
|
Limited 3-year
manufacturing fault warranty
|
|
Ordering
Information
|
Part
Number AFR2401 - YEStwin PCI Emulation Kit
|
|
YEStwin
Suite Software Information
|
|
YEStwin-Link
|
A
collection of software modules that allows the adapter to be used with
NS/Router (NetManage), IBM Personal
Communications Ver. 4.1 for Windows NT,
IBM eNetwork Personal Communications Ver. 4.2 for Windows 95 and
Windows NT, and IBM Client Access Express for Windows 95 and Windows NT
(Ver. 3 Rel. 1 Mod. 2 and higher), Windows
2000.
|
|
YEStwin-LAN
|
TCP/IP
over twinax Transport Driver. This Driver has been specifically
developed to allow the YEStwin adapter
to work as a standard Network card for TCP/IP connection.
|
|
TwinXpress
Emulation
|
32-bit
Telnet emulation program fully compatible with Windows® XP, Windows
2000 , ME, NT, 98, and 95. Supports the Workstation IDS
definition.
Allows up to 10 concurrent
Host connections, each one can support up to 32 Terminal/Printer
sessions.
Includes "Telnet
Wizard", to guide you when creating the Display and Printer
Sessions.
Includes "Session
Administrator", a powerful software tool used to create, modify
or edit all the session’s configuration parameters. |
|
YEStrans-FTP
|
FTP
file transfer utility designed specifically for use with the AS/400;
fully supports all file systems and file naming conventions. It
provides a useful Remote Command Feature allowing the user to run CL
commands within the FTP connection.
|
|
