7299 Star Hub
for IBM i5, iSeries AS/400 and S/3X
|
 |

|
Intelligent 5250
Star Hubs
for i5, iSeries AS/400 and S/3X
For Category 5 Cable Installations
|
 |
- Proven interoperability with 5250 compatibles
- Standards-based 5250 “Star” hub distribution allows
greater flexibility for adds, moves, and changes
- High reliability digital design
- Uses LAN cabling system - simple migration
- Advanced noise filtering and signal conditioning allows the use of
poorer grade cabling systems
- Automatic data rate detection
- Polarity insensitive as long as host and device polarities are the
same.
- Protocol transparent design ensures future 5250 compatibility
- Meets or exceeds EIA/TIA wiring recommendations
- Direct Replacement for IBM
6299, Gemini Express, OmniTron OmniStar, Transition Networks PowerStar
and other brands of Active Star Hubs
The IBM 7299 Star Hub transparently supports ALL features and
performance gains available on the newer IBM AS/400e Advanced Series Controllers and
5250 Emulation adapters, such as TCP/IP over 5250.
The IBM 7299 Hub has 2
Host Ports supporting 14 Device Ports available with either R-J11 or RJ-45 connectors.
Other features include Advanced Noise Filtering, LED Port Diagnostics, Configurable UTP
Pin Assignments, and a Field Replaceable wide-ranging Power Supply.

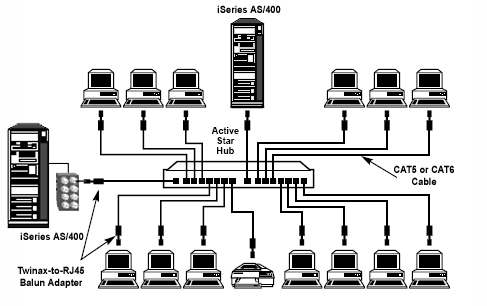

The following diagram
illustrates a typical application
of an IBM 7299 Active Star Hub.:
The iSeries AS/400 is connected directly
to the Active Star Hub with a
Twinax-to-RJ45 Balun.
The Balun is connected to the Twinax Host Port on the iSeries AS/400
and an RJ45 CAT5 or CAT6 Cable is connected to the RJ45 Host Port
on the Active Star Hub. A Balun is connected to the Twinax connection
on the Twinax Display Station or Twinax Printer and it gets connected to one
of the RJ45 Device Ports on the Active Star Hub with an RJ45 CAT5 or CAT6
Cable. The total length of the RJ45 CAT5 or CAT6 cable from the Active
Star Hub to either the AS/400 or the Twinax Device can be up to 2000 feet.
A Twinax signal over a CAT5 or CAT6 cable IS NOT limited to the 300 feet
limitation of an Ethernet TCP/IP signal.
Click here for the
IBM 7299 Datasheet
(EXACT
same specifications as the Gemini Express Hub Datasheet
Click here for additional information on the IBM 7299 Hub
Ordering Information
|
ITEM NO.
|
DESCRIPTION
|
PURCHASE |
|
IBM7299N
|
IBM 7299 Active Star Hub Two Host
Ports - 14 Device Ports RJ45 - Pins 4 & 5
(New in box inventory) |
$
450.00
 |
|
IBM7299BNDL
|
IBM 7299 Active Star Hub Two Host
Ports - 14 Device Ports RJ45 - Pins 4 & 5
(New in box inventory) with 16 RJ45 Baluns (pins 4 & 5) |
$
769.00
|
Specifications
IBM 7299 Hub
- Host Ports/Device Ports: 2/14
- Nominal input impedance: 100 ohms
- Interface: RJ11 or RJ45
- Active Pair: Configurable
Distances
- Controller to 7299 Hub: Up to 2000 ft.
- 7299 Hub to Device: Up to 2200 ft.
- Diagnostic LED’s Power, host / device port activity & mode.
Power
- 100-240 VAC to +5VDC external power supply
Temperature
- Operating: 0 to 40 C
- Storage: 0 to 85 C
- Humidity: 95% non-condensing
Dimensions
Click here for the
IBM 7299 Datasheet
(EXACT
same specifications as the Gemini Express Hub Datasheet
|
